SanDisk Extreme II Series 120GB, 240GB and 480GB SSD Review

By

ATTO & AS-SSD Benchmarks

ATTO v2.47

ATTO is one of the oldest drive benchmarks still being used today and is still very relevant in the SSD world. ATTO measures transfers across a specific volume length. It measures raw transfer rates for both reads and writes and places the data into graphs that can be very easily interpreted. The test was run with the default runs of 0.5KB through 8192KB transfer sizes with the total length being 256MB.

ATTO – Intel Z77 Platform:

SanDisk Extreme II 120GB ATTO

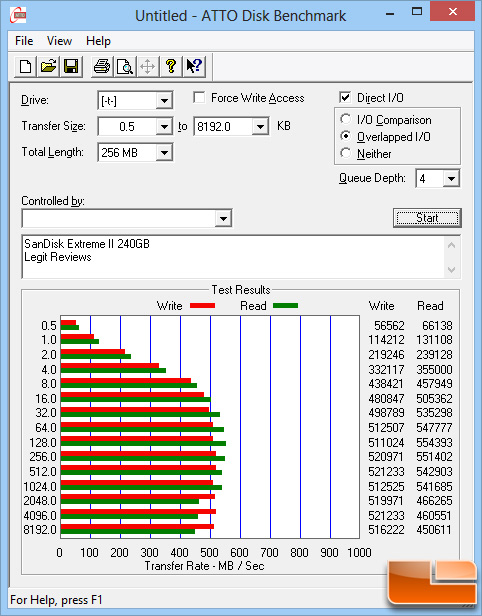

SanDisk Extreme II 240GB ATTO

SanDisk Extreme II 4800GB ATTO

Benchmark Results: Obviously, the 120GB SanDisk Extreme II drive doesn’t quite have the horsepower of the larger drives with the 240GB faring much better on the writes and the 480GB putting out some impressive numbers overall.

SanDisk Extreme II Series ATTO GRID

AS-SSD (1.6.4237.30508) Benchmark – Intel Z77 Platform:

We have been running the AS-SSD Benchmark app for over some time now and found that it gives a broad result set. The programmer has worked very hard on this software and continues to make updates often so if you use it, show him some love and send him a donation. There are now three tests that are found within the tool and we’ll show the results from two of them.

SanDisk Extreme II 120GB AS-SSD

SanDisk Extreme II 240GB AS-SSD

SanDisk Extreme II 480GB AS-SSD

Benchmark Results: All three of the SanDisk drives post a similar overall score although the larger two really do a fair bit better in the writes department and compare favorably with the best drives in the comparison.

SanDisk Extreme II Series AS-SSD GRID

SanDisk Extreme II 120GB AS-SSD

SanDisk Extreme II 240GB AS-SSD

SanDisk Extreme II 480GB AS-SSD

Benchmark Results: It’s a little bit redundant to display all three charts but it’s obvious that the compressibility of the data being used plays no factor in the performance.
