Prolimatech Super Mega CPU Cooler Review

Prolimatech Super Mega HSF

Prolimatech is a relatively new company; founded in 2008 they first grabbed the attention of enthusiasts with its Megahelems CPU cooler. They have since released other CPU coolers, and even released a revision B of the Megahelems cooler. Now they have released a new cooler that is based off the popular Megahelems cooler. The new cooler is called Super Mega and can be found online for $84.99 plus shipping.

The Super Mega is a twin tower cooler that features copper and aluminum hybrid cooling fins and 6 U shaped heatpipes in an inline configuration. Prolimatech says the Super Mega is designed such that the fins have minimal air resistance and it will work with fans that operate between 800-1200 RPM, but for best performance they suggest a 1600 RPM fan. The Super Mega also can support both 120 and 140mm fans due to the universal spring clips and the way they attach to the cooler.

Out of the box the Super Mega only supports Intel LGA sockets. Dont fret, AMD crowd; it will work for you as well, you just have to spend little more and get the AMD mounting kit. The Super Mega also has an adjustable pressure setting as well. By changing out two screws the pressure applied to the socket is increased to 70lbs. The Thermalright Venomous X has this feature as well, and it did improve the performance on our old test system. There is a bit of caution that is need before using the higher pressure mount on the socket, and as we will see, Prolimatech points this out several times. The issue is that it may damage the socket from the increased pressure. So before using the 70lb pressure mount you will have to decide if the gain is worth the chance of killing your hardware.

The Super Mega isnt exactly light, either; it weighs in at an impressive 945.2g or a hair over 2 lbs without fans. This is by no means rare anymore as most performance CPU coolers are over 900g. Prolimatech handles it well, though. The mounting system for the Super Mega is pure overkill as you will see shortly. Now, let’s review the features and specifications for the Super Mega.

Prolimatech Super Mega Features

• Copper and Aluminum Hybrid for best heat collection and dissipation ratio.
• Copper fins are strategically positioned for better heat dissipation.
• Top fin made of scratch-resistant stainless steel to preserve shine.
• Minimal air resistance between fins allowing best balance between noise and performance for fans in the range of 800-1200RPM. For all out performance, fan RPM at 1600 or above is recommended.
• Vertically adjustable 120/140 mm universal fan clips redesigned for better installation compatibility.
• The Black screws are included to provide extra pressure for better contact with CPU and heatsink.

Prolimatech Super Mega Specifications

• Heatsink Dimension: (L)130mm X (W)74mmX (H)158.7mm
• Heatsink Weight: 945.3 g
• Heatpipe: 6mm X 6pcs
• Suggest Fan: 120mm X 25mm ,140mm X 25mm
• Suggest Fan Speed: 1000~1200rpm
• CPU Platform: Intel Socket LGA 775/1156/1366
• Warranty: 2 Years

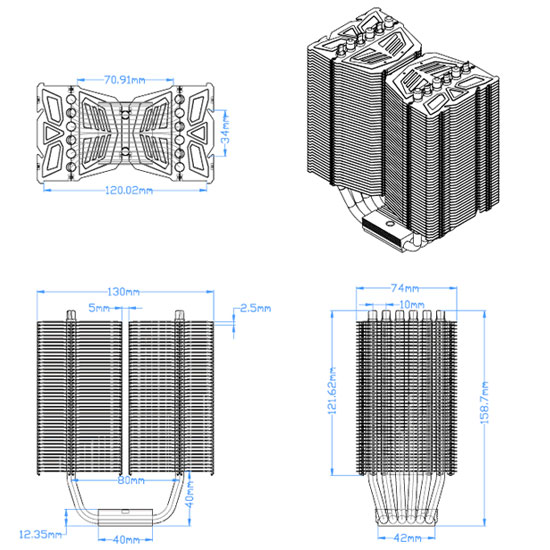

Line drawing from Prolimatech website.
