OWC Mercury EXTREME Pro 6G 120GB SSD Review
Comparison Drives and Test System
Legit Reviews Test System
All tests were performed on a fresh and up-to-date install of Windows 7 Pro x64 with no other applications running while using AHCI mode set through the BIOS. Synthetic Benchmarks were run with the OS loaded on a 40GB Corsair Force SSD. In between every test, the drive was secure erased using Parted Magic. As such, all results should be indicative of optimal performance. All components were set to their default speeds and are listed below and we’d like to thank ASUS for their generosity and support in providing the motherboard for our test bench.
P67 Test Bench
| Intel LGA 1155 Test Platform | |||||
|---|---|---|---|---|---|
| Component | Brand/Model | Live Pricing | |||
|
Processor |
Core i5 2500k | ||||
|
Motherboard |
ASUS P8P67 Deluxe | ||||
|
Memory |
Crucial 2 x 2GB PC3-10600 | ||||
|
Video Card |
Gigabyte GeForce GT 430 | ||||
|
OS Drive |
Corsair Force 40GB | ||||
|
Power Supply |
Corsair HX1000 | ||||
|
Operating System |
Windows 7 Pro 64-Bit | ||||
Comparison Drives & Other Models We Have Tested
Since there are so many SSDs out there now with different controllers, we started a reference table of which controllers are used by each drive to help you compare results.
Different controllers definitely perform differently and each has various strengths and weaknesses. Like CPU’s, even identical drives will have variations in performance and part of that variance may be attributable to the NAND flash used. Since the tests of the drives listed have spanned different test benches and represent three different interfaces, we have listed them for easy reference.
| SSD MODEL |
CONTROLLER(S) | TRIM Support? |
| Crucial m4/Micron C400 256GB |
Marvell 88SS9174 | Yes |
| Intel 320 Series 128GB |
Intel PC29AS21BA0 (G3 firmware) | Yes |
| Corsair Performance 3 Series 128GB |
Marvell 88SS9174 | Yes |
| Intel 510 Series 250GB |
Marvell 88SS9174 | Yes |
| Plextor M2 Series 128GB |
Marvell 88SS9174 | Yes |
| Kingston V100 Series 128GB |
JMicron JMF618 (Toshiba branded) | Yes |
| OCZ Vertex 3 Pro 200GB (beta) | SandForce SF-2500 (SF-2582) | Yes |
| RunCore Pro V 120GB |
SandForce SF-1200 (SF-1222) | Yes |
| Samsung 470 Series 256GB |
Samsung S3C29MAX01-Y340 | Yes |
| Zalman N Series 128GB | SandForce SF-1200 (SF-1222) | Yes |
| Kingston V+100 128GB | Toshiba T6UG1XBG | Yes |
| Corsair Force 40GB | Sandforce SF-1200 (SF-1222) | Yes |
| Intel X25-V 40GB | Intel PC29AS21BA0 (G2 firmware) | Yes |
| G.Skill Phoenix Pro | Sandforce SF-1200 (SF-1222) | Yes |
| Patriot Inferno 100GB | Sandforce SF-1200 (SF-1222) | Yes |
| OCZ RevoDrive X2 240GB SSD | (4X) Sandforce SF-1200 (SF-1222) | No* |
| OCZ RevoDrive 120GB SSD | (2X) Sandforce SF-1200 (SF-1222) | No* |
| ADATA S596 128GB | JMicron JMF612 | Yes |
| Corsair Force Series 120GB | Sandforce SF-1200 (SF-1222) | Yes |
| Patriot Zephyr 128GB | JMICRON JMF612 | Yes |
| Patriot Torqx 128GB | Indilinx Barefoot | Yes |
| Kingston 30GB V Series SNV125-S2 |
Toshiba T6UG1XBG | Yes |
| Kingston 128GB V Series SNV425-S2 |
JMICRON JMF618 | Yes |
| Corsair Force Series 100GB |
Sandforce SF-1200 (SF-1222) | Yes |
| Corsair Nova Series 128GB |
Indilinx Barefoot | Yes |
| Intel X25-M 160GB G2 SSD |
Intel PC29AS21BA0 (G2 firmware) | Yes |
| Micron RealSSD C300 (6Gbps) 256GB | Marvell 88SS9174 | Yes |
| * TRIM is not supported due to the RAID controller. | ||

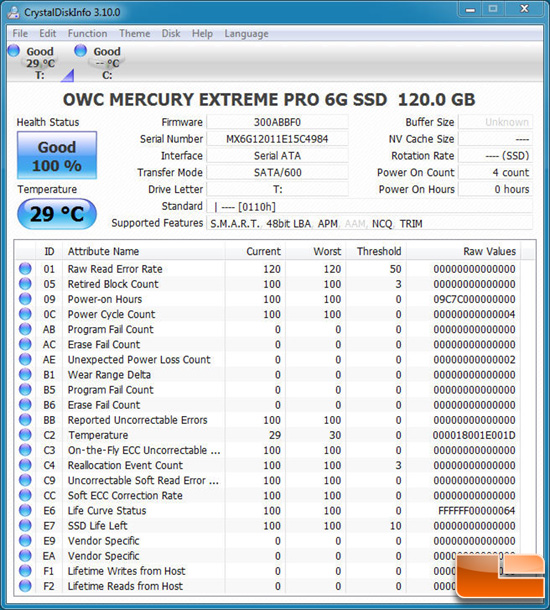

In the readout on CrystalDiskInfo 3.10.0, both NCQ and S.M.A.R.T. are
enabled, as is TRIM. This is a great free tool to see what version of
firmware the drive is running in the event there are updates
available.
On to the benchmarks!
