Kingston KC2500 1TB NVMe SSD Review

By Nathan Kirsch

Kingston KC2500 – The Fastest Drive Rex Has to Offer

Kingston recently released the KC2500 M.2 NVMe PCIe 3.0 x4 SSD series for desktop, workstations and high-performance computing (HPC) systems. With speeds up to 3,500MB/s read and up to 2,900MB/s write, the KC2500 certainly has the high-end specifications that one would expect from a flagship drive series. This speed comes from the use of the SM2262EN 8-channel controller by Silicon Motion paired with 96-layer BiCS4 3D TLC NAND Flash by KIOXIA.

The Kingston KC2000 series of SSDs used the SMI SM2262EN controller with 64-layer 3D TLC NAND Flash by Intel. The SMI SM2262EN controller is used by the HP SSD EX950 series as well as the ADATA XPG SX8200 Pro series, but both of those used 64-layer 3D TLC NAND Flash. So, Kingston has something a little different here to offer with the use of 96-layer BiCS4 3D TLC NAND Flash.

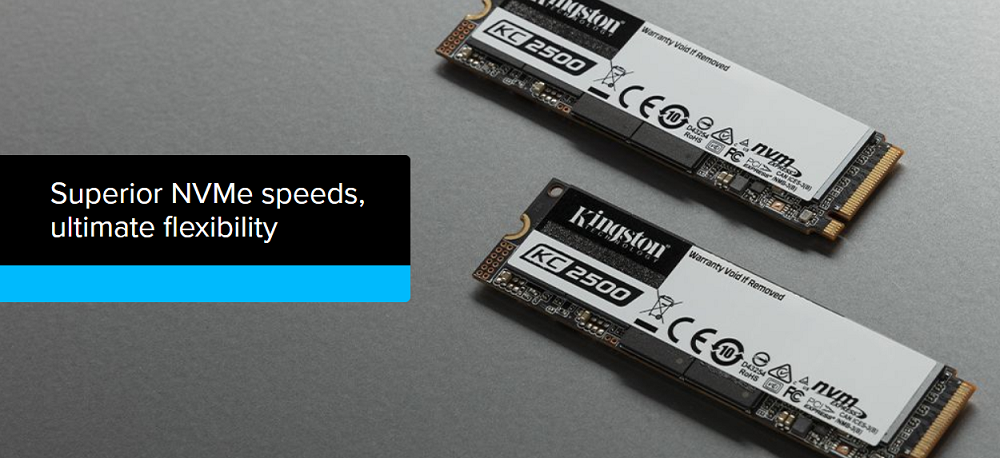

Kingston KC2500 Header

The Kingston KC2500 NVMe SSD series is available in 250GB, 500GB, 1TB and 2TB capacities and they command a pretty hefty price tag.

  • Kingston KC2500 250GB – SKC2500M8/250G – $74.76 shipped ($0.30 per GB)
  • Kingston KC2500 500GB – SKC2500M8/500G – $127.25 shipped ($0.25 per GB)
  • Kingston KC2500 1TB – SKC2500M8/1000G – $226.09 shipped ($0.23 per GB)
  • Kingston KC2500 2TB – SKC2500M8/2000G – $421.99 shipped ($0.21 per GB)

Pricing for other brands 1TB drives based on the SM2265EN controller generally sell in the $0.13-$0.14 per GB range. Kingston is nearly double that with their KC2500 1TB drive coming in at nearly $226 or about $0.23 per GB of storage capacity.

Kingston KC2500 Specifications

The performance of the KC2500 depends on the capacity of the drive that you get, but the 1TB and 2TB models are the fastest with 3500 MB/s read and 2900 MB/s write speeds. The Random 4K performance on all capacities is rated at up to 375,000 IOPS read and 300,000 IOPS write. Each drive features a 150TBW endurance rating for every 250GB of storage space and is backed by a 5-year warranty.

Kingston sent over the KC2500 1TB for us to test on our AMD Ryzen X570 platform since it is one of the most popular capacities for enthusiasts in the DIY PC market right now. The drive comes on a simple retail hanging card with straight forward messaging on the front.

Kingston KC2500 NVMe SSD

Inside the box you’ll find the KC2500 NVMe SSD and a code for Acronis True Image HD drive cloning software. The KC2500 is a double-sided PCIe Gen3x4 NVMe SSD that uses the M.2 2280 form factor. There are a total of eight 3D TLC NAND Flash chips on the 1TB drive and two DRAM chips that make up the drives 1GB of on-board DRAM cache.

Kingston KC2500 1TB Solid State Drive M.2 2280

The KC2500 is a self-encrypting drive that supports end-to-end data protection using XTS-AES 256 bit Hardware-based encryption and will work with TCG Opal 2.0 security management solutions from Symantec, McAfee, WinMagic and others. Microsoft eDrive is also supported by the KC2500, so it is ready for those wanting to run BitLocker.

Kingston KC2500 1TB NVMe SSD

There is no label on the back of the Kingston KC2500 1TB drive, so you can see all the components of the drive without having to void your warranty. Kingston packaged the 96-layer 3D TLC NAND Flash and DDR3L cache chips, so everything is Kingston branded.

Kingston KC2500 TLC NAND Flash

You can download the Kingston SSD Manager (KSM) utility for free and this software will let you know drive temperature, SSD health and if a firmware update is available. It is also where you can go to enable IEEE 1667 as it comes disabled by default. TCG OPAL version 2.0 is also supported on this drive for those that are needing a solution with hardware encryption. The Kingston SSD Manager will only work with Windows as it is not compatible with Mac OS or Linux distributions.

Kingston SSD Manager

Here is a KC2500 promotional video that Kingston released with the introduction of the NVMe PCIe SSD series.

Let’s take a look at the test system and get to the KC2500 benchmarks!
