Cooler Master Hyper 612 Version 2 CPU Cooler Review

Hyper 612 V2 Benchmarking

In the benchmarks that will be run, we used an Intel Core i7-4770K processor clocked at 3.5GHz with Turbo Boost and the low power state enabled. Turbo Boost allows the 4770k to hit up to 3.9GHz right out of the box.

To record temperatures, we used Core Temp, logged the temperatures for 15 minutes or while each program was active, and averaged all 4 cores.

Benchmark wise, we will be using several synthetic and real-world benchmarks to perform normal, heavy, and extreme load. The benchmarks that we’re going to use today include: Prime95, x264, 3DMark 2013 (Firestrike test only), Metro Last Light, and Sleeping Dogs. Prime95 will peg all four cores and eight threads to 100% with the In-Place Large FFT test, which will help us to understand exactly how hot this CPU can get with each cooler.

Ambient temperature during all testing was 74 degrees Fahrenheit.

I have reviewed several other liquid CPU coolers in the past and you will find them in the charts below for comparison purposes. I did not start overclocking the 4770k until after my Cooler Master Glacer 240L review, so not all coolers were tested under the increased stress of an overclock.

Idle

Prime95

X264

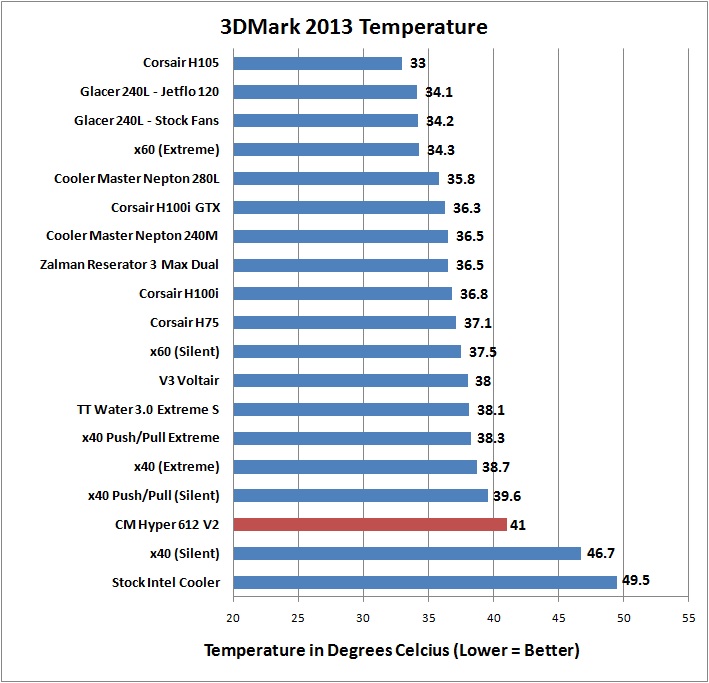

3D Mark 2013

Metro Last Light

Sleeping Dogs

Overall Results: With the stock cooler and the V3 Voltair to compare to for air coolers, we can tell that V3’s TEC technology helps it succeed better than a traditional cooler like the Hyper 612 V2 that we tested here. Still, the Hyper 612 V2 did significantly better than the stock cooler.
