ATI Radeon HD 5830 1GB DX11 Video Card Review

Unigine ‘Heaven’ DX11

The ‘Heaven’ benchmark that uses the Unigine easily shows off the
full potential of DirectX 11 graphics cards. It reveals the enchanting
magic of floating islands with a tiny village hidden in the cloudy
skies. With the interactive mode emerging, experience of exploring the
intricate world is within reach. Through its advanced renderer, Unigine
is one of the first to set precedence in showcasing the art assets with
tessellation, bringing compelling visual finesse, utilizing the
technology to the full extent and exhibiting the possibilities of
enriching 3D gaming. The distinguishing feature of the benchmark is a
hardware tessellation that is a scalable technology aimed for automatic
subdivision of polygons into smaller and finer pieces so that
developers can gain a more detailed look of their games almost free of
charge in terms of performance. Thanks to this procedure, the
elaboration of the rendered image finally approaches the boundary of
veridical visual perception: the virtual reality transcends conjured by
your hand.

For this benchmark VSync was turned off and we tested with 0x AA and 4x AF to check out system performance. We also ran the benchmark at
1920×1200 and 1280×1024 to see how the benchmark ran at some different
monitor resolutions.

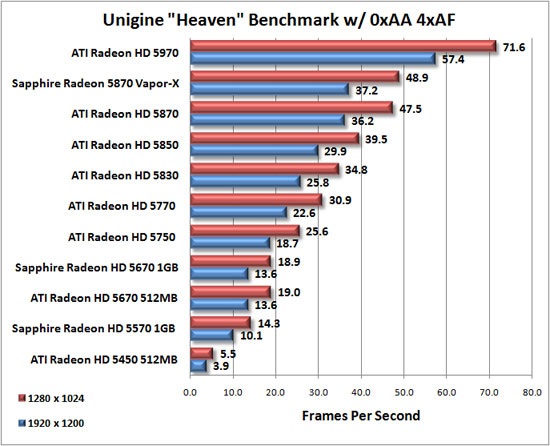

Benchmark Results: This benchmark result chart only shows AMD graphics cards since you must be DirectX 11 compatible to run this test. ATI has 11 different DX11 enabled video cards that can run this benchmark and as you can see performance goes up gradually across the ATI Radeon HD 5000 series of graphics cards. The ATI Radeon HD 5830 fills the performance gap between the Radeon HD 5850 and the Radeon HD 5770 perfectly.
