AMD Radeon HD 6790 1GB Video Card Review

By Nathan Kirsch

The Test System

All testing was done on a fresh install of Windows 7 Ultimate 64-bit with all the latest updates installed. All benchmarks were completed on the desktop with no other software programs running. The Kingston HyperX T1 DDR3 memory modules were run in triple-channel mode at 1866MHz with 8-8-8-24 1T timings. The ASUS P6X58D-E motherboard was run using BIOS 0502 with the processor running stock settings and Turbo enabled.

Drivers Used For Testing:

  • The ATI Radeon HD 5000 series cards were all tested using CATALYST 10.10 drivers
  • The AMD Radeon HD 6800 series cards were tests using CATALYST 10.11 drivers
  • The AMD Radeon HD 6950 1GB was tested using 11.1a Hotfix drivers.
  • The AMD Radeon HD 6790 1GB and 6990 1GB were tested using 11.4 beta drivers.
  • All of the NVIDIA video cards were tested with Forceware 260.89 WHQL drivers with the exception of;
  • The GeForce GTX480/GTX570/GTX580 as those were tested with 263.09 WHQL drivers
  • The GeForce GTX 560 Ti was tested with Forceware 266.56 drivers
  • The GeForce GTX 550 Ti cards were tested with Forceware 267.59 drivers
  • The GeForce GTX 590 was tested with Forceware 267.71 drivers

Windows 7 Drivers Used:
Intel Chipset Inf Update Program V9.1.1.1025
Realtek Audio Driver V6.0.1.6037 for Windows 64bit Windows 7.(WHQL)
Marvell Yukon Gigabit Ethernet Driver V11.10.5.3 for 32/64bit Windows 7.(WHQL)
Marvell 9128 SATA 6Gbps Controller Driver V1.0.0.1036 for 32/64bit Windows 7.

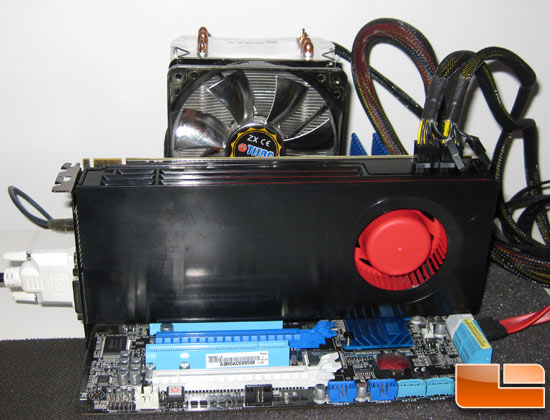

The Video Card Test System

Here is the Intel LGA 1366 Test platform:

Intel Test Platform

Component

Brand/Model

Live Pricing

Processor

 Intel Core i7-970

Motherboard
ASUS P6X58D-E

Memory
6GB Kingston DDR3 1866MHz

Video Card

See Below

Hard Drive

Crucial C300 256GB SSD

Cooling

Titan Finrar

Power Supply

 Corsair HX850W

Chassis

None (Open Bench)

Operating System

Windows 7 Ultimate 64-Bit

Video Cards Tested:

  • ASUS GeForce GTX 590 – 613MHz Core/1225MHz Shader/855MHz Memory
  • ASUS GeForce GTX 580 – 782MHz Core/1564MHz Shader/1002MHz Memory
  • NVIDIA GeForce GTX 580 – 772MHz Core/1544MHz Shader/1002MHz Memory
  • NVIDIA GeForce GTX 570 – 732MHz/1464MHz Shader/950MHz Memory
  • NVIDIA GeForce GTX 560 Ti – 823MHz/1645MHz Shader/1002MHz Memory
  • ASUS Ultimate GeForce GTX 550 Ti – 1015MHz/2030MHz Shader/1050MHz Memory
  • MSI GeForce GTX 550 Ti OC – 950MHz/1900MHz Shader/1075MHz Memory
  • NVIDIA GeForce GTX 550 Ti – 900MHz/1800MHz Shader/1026MHz Memory
  • Galaxy GeForce GTX 480 – 700MHz Core/1401MHz Shader/924MHz Memory
  • ASUS ENGTX470 GeForce GTX 470 – 608MHz Core/1215MHz Shader/837MHz Memory
  • EVGA GeForce GTX 460 1GB FTW – 850MHz Core/1700MHz Shader/1000MHz Memory
  • EVGA GeForce GTX 460 768MB SuperClocked – 763MHz Core/1526MHz Shader/950MHz Memory
  • NVIDIA GeForce GTS 450 1GB – 783MHz Core/1566MHz Shader/902MHz Memory
  • EVGA GeForce GTS 450 1GB FTW – 920MHz Core/1840MHz Shader/1026MHz Memory
  • ASUS GeForce GTS 430 1GBDDR3 – 700MHz Core/1400MHz Shader/800MHz Memory
  • AMD Radeon HD 6990 – 830MHz Core / 1250MHz Memory
  • AMD Radeon HD 6970 – 880MHz Core / 1375Hz Memory
  • AMD Radeon HD 6950 2GB – 880MHz Core /1250MHz Memory
  • AMD Radeon HD 6950 1GB – 880MHz Core /1250MHz Memory
  • AMD Radeon HD 6870 – 900Mhz Core / 1050MHz Memory
  • Diamond Radeon HD 6870 – 940Mhz Core / 1100MHz Memory
  • AMD Radeon HD 6850 – 775Mhz Core / 1000MHz Memory
  • XFX Radeon HD 6850 – 775Mhz Core / 1000MHz Memory
  • AMD Radeon HD 6790 – 840MHz Core / 1050MHz Memory
  • ATI Radeon HD 5970 – 735Mhz Core / 1010MHz Memory
  • ATI Radeon HD 5870 – 850Mhz Core / 1200MHz Memory
  • ATI Radeon HD 5850 – 725Mhz Core / 1000MHz Memory
  • Sapphire Radeon HD 5770 – 850Mhz Core / 1200MHz Memory
  • HIS Radeon HD 5570 512MB GDDR5 – 650MHz Core / 1000MHz Memory

AMD Radeon HD 6790 Video Card GPU-Z 0.5.2 Details:

AMD Radeon HD 6790 Video Card GPU-Z 0.5.2 Details
AMD Radeon HD 6790 GPU-Z 0.5.2 Details
