abit AW9D-MAX i975 Express Motherboard Review

Memory Performance

EVEREST Ultimate Edition; v3.50:

EVEREST Ultimate Edition is an industry leading system diagnostics and benchmarking solution for enthusiasts PC users, based on the award-winning EVEREST Technology. During system optimizations and tweaking it provides essential system and overclock information, advanced hardware monitoring and diagnostics capabilities to check the effects of the applied settings. CPU, FPU and memory benchmarks are available to measure the actual system performance and compare it to previous states or other systems.

Multi-Core Support: Full support for dual and quad-core Intel Core 2 Duo, Core 2 Quad, Core 2 Extreme and Xeon processors, including CPU diode temperature measurement for all processor cores. Fully optimized CPU and SSE-enabled floating-point benchmarks to show the outstanding performance of Core 2 processors.

With both test platforms running the same kit of memory at 3-3-3-9 timings it’s clear that the Intel D975XBX2 motherboard has great memory performance. The Intel D975XBX2 (Bad Axe 2) is an updated version of the Intel D975XBX (Bad Axe) motherboard and one of the major improvements Intel did to the board was to improve the memory performance and it looks like they did a great job!

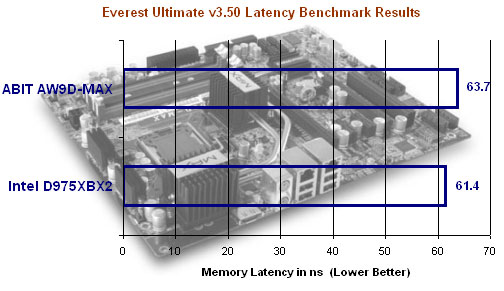

Everest has a built in Latency test and the results confirmed what the benchmark results showed. The Intel D975XBX Desktop motherboard has a lower latency, which means it will be able to access the memory faster. In this case the Bad Axe 2 is 2.3ns faster than Bushido!
