SanDisk Ultra Plus 256GB SSD Review

CrystalDiskMark and Anvil IOPS

CrystalDiskMark is a small benchmark utility for drives and enables rapid measurement of sequential and random read/write speeds. Note that CDM only supports Native Command Queuing (NCQ) with a queue depth of 32 (as noted) for the last listed benchmark score. This can skew some results in favor of controllers that also do not support NCQ.

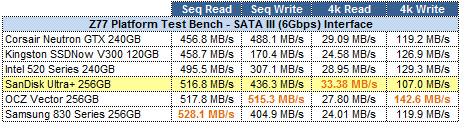

CrystalDiskMark 3.0.2 x64 – Intel Z77 Platform

Benchmark Results: Given the other drives in the comparison are some of best drives on the market, the SanDisk Ultra Plus scored very well and again lead the 4k reads in the comparison chart.

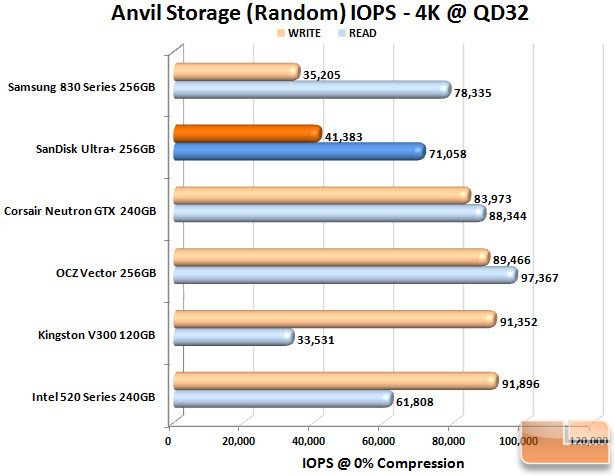

Anvil Storage Utilities 1.050 RC5- Intel Z77 Platform

Along with the move to a new platform, we decided to make a change in one of the benchmarks. There’s a relatively new benchmark called Anvil Storage Utilities that is in beta but close to production. It’s a very powerful tool that measures performance through a variety of tests which can be customized. Since some of the tests more or less duplicate what we get from other benchmarks we use already, we decided to use the IOPS (Input/Output Operations Per Second) testing on 4kb file sizes at a queue depth of 32. IOPS performance is something SSD makers tout quite a bit but we generally don’t do a lot of IOPS testing because frankly a lot of users can’t relate to IOPS metrics as well and it tends to be more meaningful to the enterprise/server crowd. Still, it is another performance indicator with relevance and while some drives post good MB/s numbers, their IOPS scores aren’t always commensurate which this test will prove out.

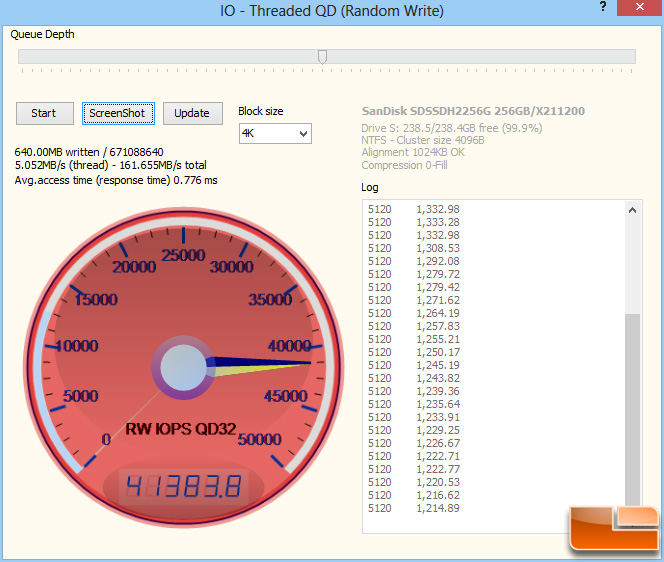

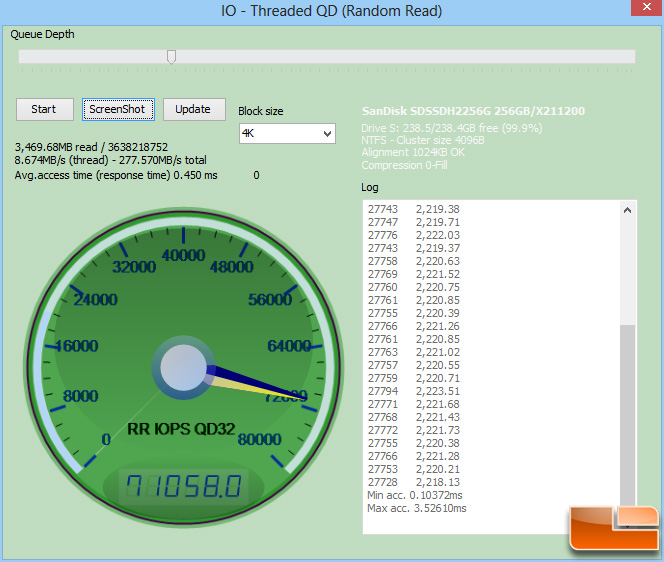

Benchmark Results: IOPS are a good bit below the SanDisk specification of 82k on reads and a little above the 39k specification on writes but overall decent performance.
