DEEPCOOL TriStellar ITX Chassis Coming In June For $400

By

DEEPCOOL Debuts TriStellar ITX Chassis Globally

Beijing, China May, 2015 DEEPCOOL

GAMER STORM is a High-end brand of DEEPCOOL, serving gaming enthusiasts with products that have elegant design and great cooling performance. Adhering to these characteristics, DEEPCOOL releases the first GAMER STORM ITX chassis TRISTELLAR.

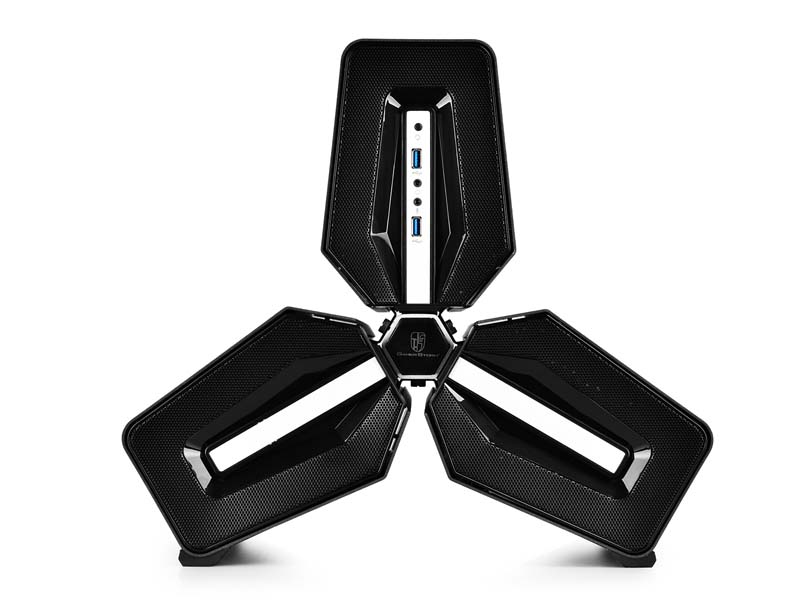

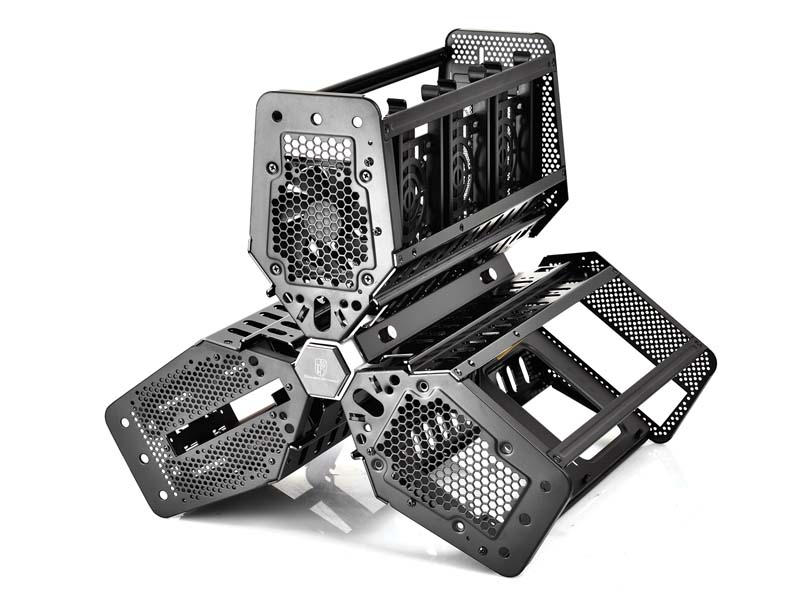

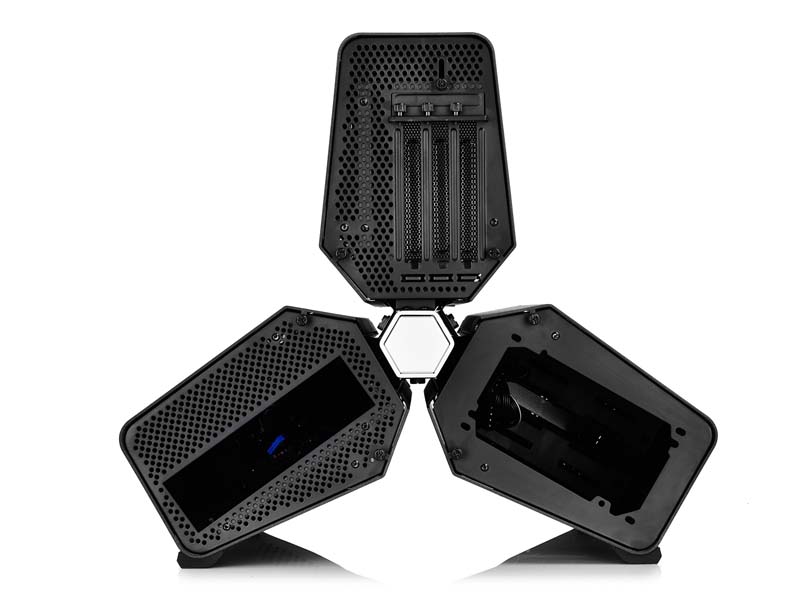

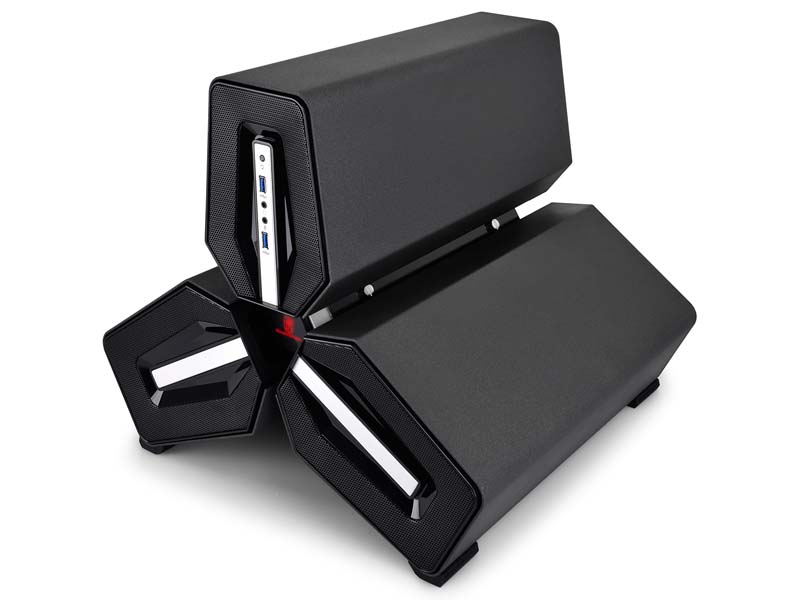

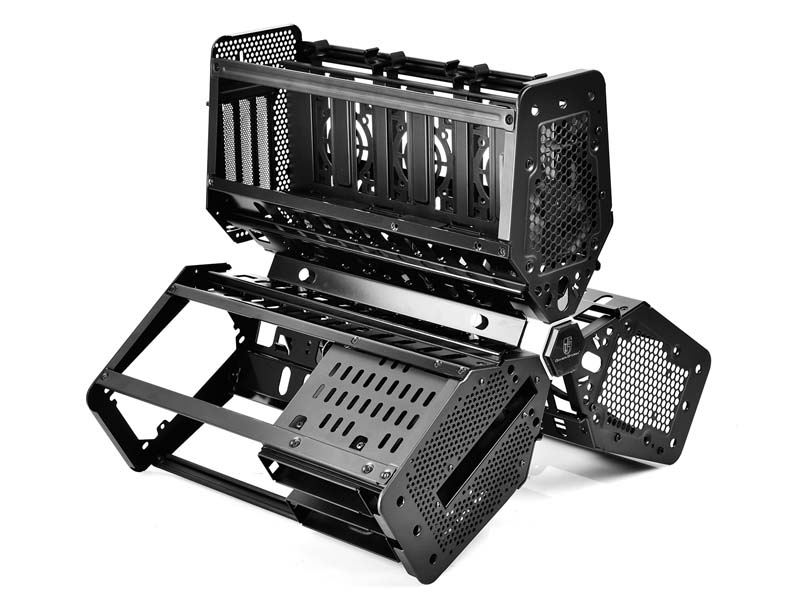

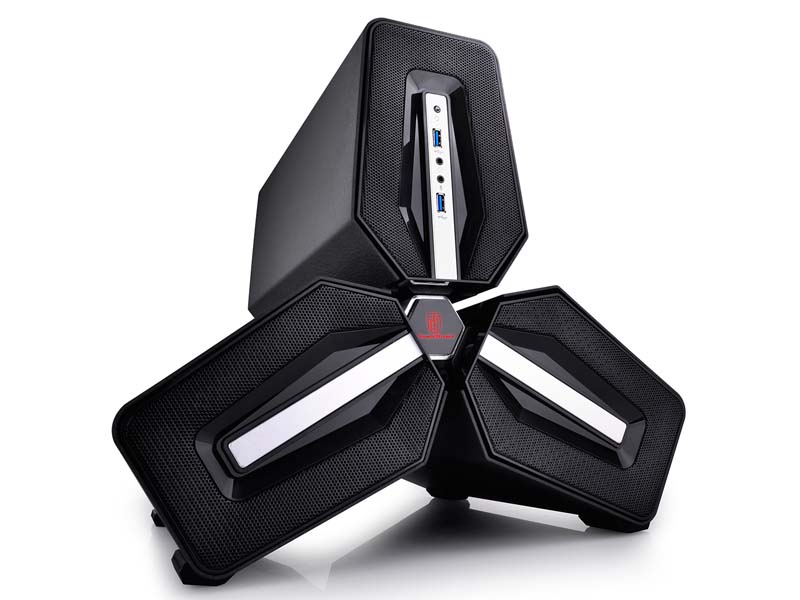

TRISTELLAR disrupts the traditional concept of a PC case, splits components into three isolated cabins. Three V shape metal frames ensure TRISTELLAR has a reliable and solid structure. Besides the elegant appearance, it has great cooling performance by separating the most hit-generating parts. The latest gaming configuration provides an excellent choice to DIY PC enthusiasts.

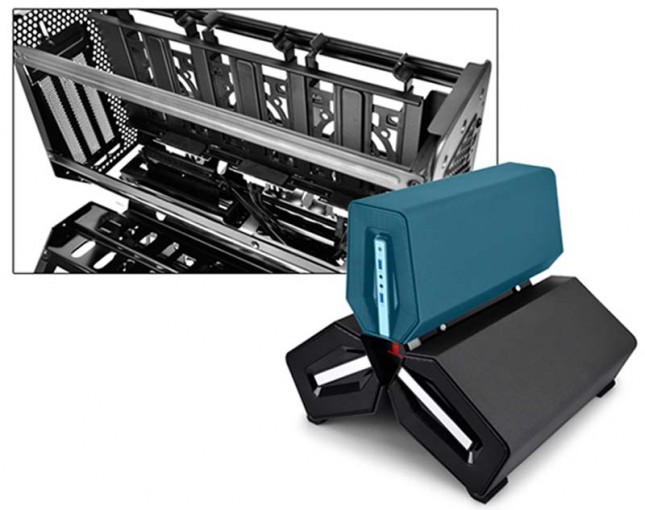

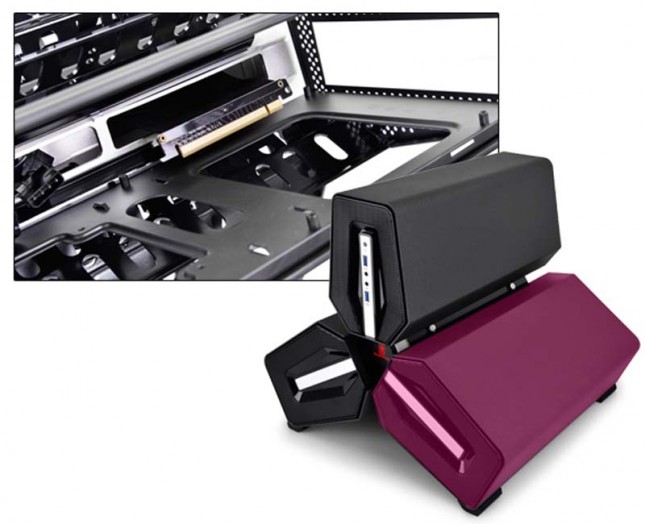

Cabin 1. Graphic Cards

The top cabin supports full-length (up to 320mm) graphic cards, which is connected to motherboard by a short PCI-E extension cable. Preinstalled 90mm fan in front provides sufficient airflow. There are three 2.5″SDD bays with hot plugging (SATA) ports next to GPU.

DeepCool TriStellar

Cabin 2. Motherboard

The bottom-right cabin supports a Mini-ITX motherboard, also leaves large space for CPU air cooler (up to 80mm) and120mm case fan, or120mm AIO liquid cooler.

DeepCool TriStellar

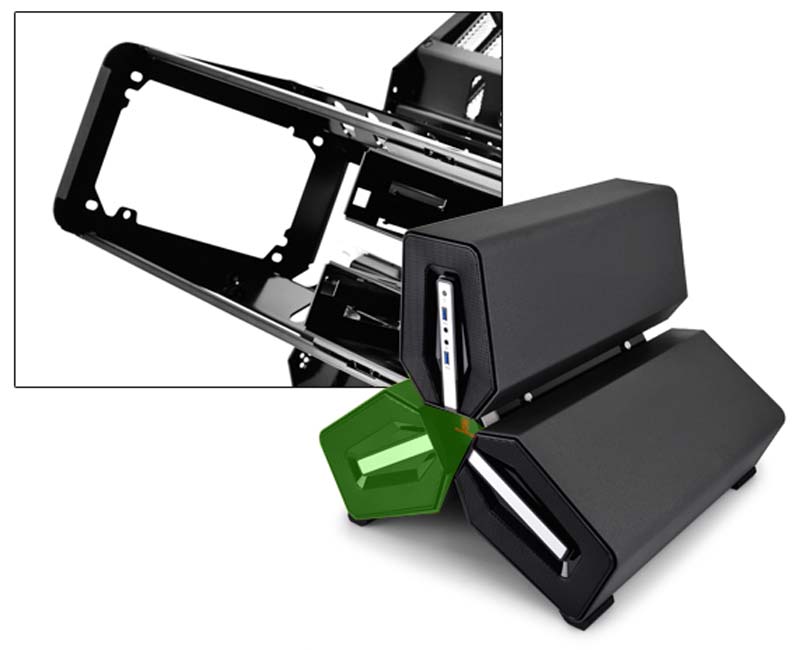

Cabin 3. Power Supply

The bottomleft cabin is capable to accommodate a PSU up to 160mm length. Two 3.5″ HDD bays with hot plugging (SATA) ports and one 5.25″ HDD slot-load optical drive are furnished.

DeepCool TriStellar

In addition, to connect components together, cables pass through a hollow aluminum spine to center of the V shape frames, which comes with a LED power button.

DEEPCOOL TRISTELLAR Technical Specs

Materials SPCC (Panel thickness: 0.6mm; Cabin Cover thickness: 2mm)
Product Dimension L395*W435*H388mm
Package Dimension L540*W465*H485mm
Weight Net.: 16KG Gross: 19KG
5.25″ Drive Bays one slot-load Optical Disk Drive Bay
3.5″ Drive Bays 2 (all tool-free installation with hot plugging port)
2.5″ Drive Bays 3 (all tool-free installation with hot plugging port)

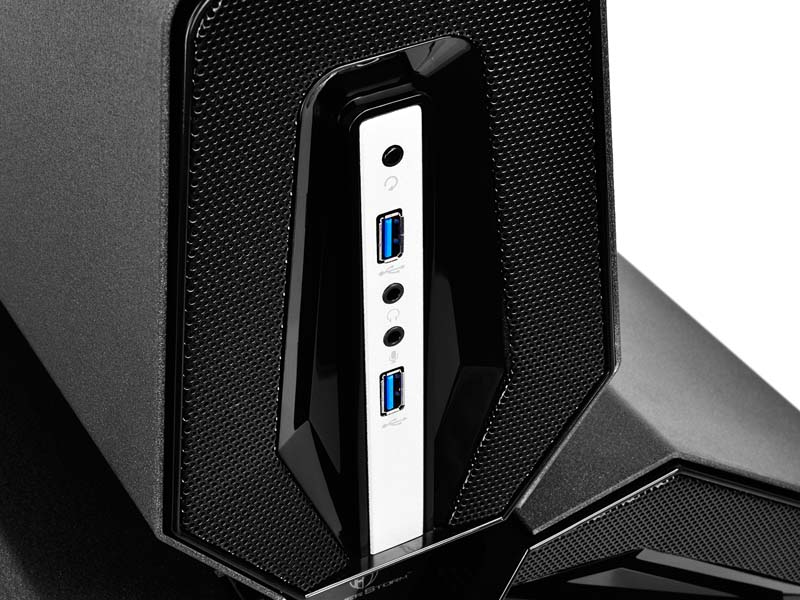

I/O Panel 2USB3.0/Audio1/Mic1
Expansion Slots 3 Slots (1 way)

Included: 190mm Black fan in the VGA cabin

Cooling Fans Optional: 1120mm fan in the mainboard cabin if liquid radiator not installed. (this fan should blow outward to ensure a good cooling effect)
Power Supply Type ATX PS2
CPU Cooler Compatibility 80mm height
VGA Compatibility 320mm

Available in June globally, 2015

MSRP: 399.99 USD
For more information, please check the official website – www.deepcool.com
